TFIIDPRO TERRAFIRMA IID TOOL PROFESSIONAL DIAGNOSTIC TOOL
TFIIDPRO TERRAFIRMA IID TOOL PROFESSIONAL DIAGNOSTIC TOOL
Brand: Allmakes
IID TOOL Professional Diagnostic Tool
TFIIDPRO Universal
Description
- Full Diagnostic Captability
- Advanced Programming Functions
- Multi-vehicle Support
- Integrated Interface
- iOS/Android App
- Engine tuning, EGR Patching and more (purchased seperately)
- Updates (£500/yr)
The perfect diagnostic tool for workshop and professional use.
Probably the most capable and advanced diagnostic systems for Land Rover and Range Rover in the aftermarket. The G3, G4 and PRO diagnostic tools connect your tablet or phone via the vehicle's OBD Port.
These really are exceptional diagnostic tools for the modern 4x4 owner/workshop. Simply plug it in, connect via Bluetooth to your tablet or phone and get full access to your vehicle?s brain, diagnose and clear faults, reset functions and personalise settings.
For the TFIIDPRO, updates are free for a period of one year after the date of purchase. Afterwards, firmware updates will be available for an annual fee of 500 GBP. The IIDPRO firmware will be continually improved through the addition of new service routines, vehicle enhancements options (modified ECU firmware's etc), convenience features, new vehicle coverage and many more items. The annual fee will be adjusted once the product has matured, and updates become less frequent. This annual fee is not mandatory; if you decide not to partake in this offer the tool will continue to function normally even without the latest firmware additions.
ECU's Supported
Flashing of new ECU's and ECU re-flashing is supported. For a list of supported ECU re-flashes, consult the functionality list and user manual. More ECU files will be added and available by purchasing an additional module except for the TFIIDPRO (included in the yearly subscription).
Full Diagnostic Capability
- Fault Read / Clear of all vehicle systems
- Service routines (including service reminder reset)
- Live Data
- Manual Components Activation (Output Control)
- Calibrations (except suspension, see advanced programming functions)
- Vehicle control modules software updates (ECU Re-Flashing*)
- Exclusive content available (modified firmware etc, see FAQ)
- Engine tuning, EGR Patching, Speed limiter raising and more (purchased separately***)
- Key programming (except Range Rover L322 2002-2005, see user manual for restrictions)
- Car Configuration / Personalization (CCF editing, full CCF access upon request)
- Height Adjustment (front, rear or all)
- Suspension individual sensor calibration (needed after a repair)
- Backup of original height and CCF values
- 3 personalized height profiles
- Easy access to all Diagnostic and Programming functions
- Email exportation of faults, live data and ECU info
- Real time logging of live data
- Up to 8 live values displayed simultaneously on graph and numerical views
- All live values (PIDs) available for all ECUs
- Complete Car Configuration File (CCF) access upon request, free of charge
- Guided suspension calibration algorithm which eliminate the need for a level surface, calculations and is done in 5 minutes
- Height Adjust screen with saved profiles and default height available in 2 clicks
- Height Control screen which allows height mode selection remotely and lower to bumpstops feature
- Enhanced ECU Info function allowing to see if an ECU is up to date or if an update is available
- Jaguar support, 2008 and up vehicles (Under Beta testing)
- And more
Supported mobile devices
iPad Mini, iPad 3rd generation onward, iPhone 4S onward. Android devices fitted with a Bluetooth V4.0 transceiver and running on OS 4.3 or higher. Low cost generic Android devices rarely work.

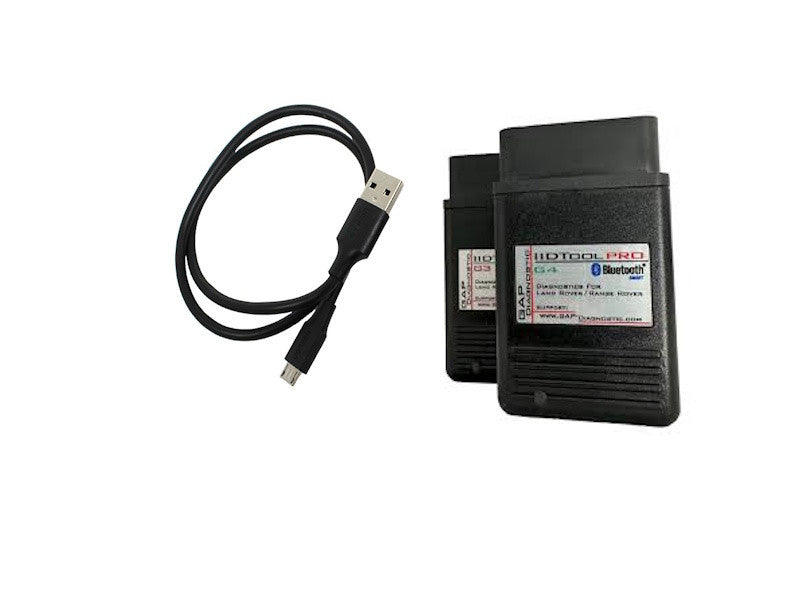

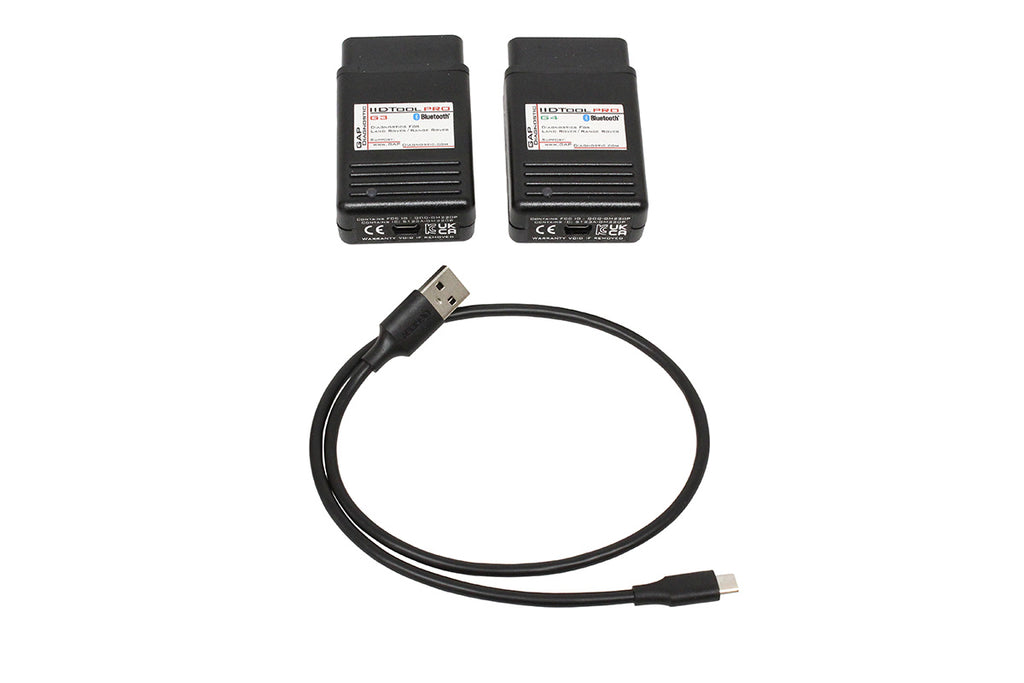

Comes with one USB cable, quick start guide and storage box. Mobile device not included.
Subscription package
Updates are free for a period of one (1) year following the date of purchase. Afterwards, an annual fee will apply in order to get the latest IIDTool Pro firmwares. We are continuously working on improving the IIDTool Pro firmware by adding new service routines, vehicle enhancements options (modified ECU firmware?s etc), convenience features, new vehicle coverage and many more items.
This annual fee is not mandatory. For example, if one decides not to benefit from this offer, the tool will continue to work normally without the latest additions.
Vehicle Coverage -
- Defender (2007 - 2015)
- New Defender
- Discovery 3
- Discovery 4
- Discovery 5
- Discovery Sport
- Freelander 2
- Range Rover L322
- Range Rover L494
- Range Rover L405
- Range Rover Evoque
- Range Rover Sport L320
- Range Rover L460
- Range Rover Sport L461
- Velar
Product Code - TFIIDPRO
