TF3360 TERRAFIRMA TWIN MOTOR HIGH SPEED 12000LB WINCH WITH 50M SYNTHETIC ROPE
TF3360 TERRAFIRMA TWIN MOTOR HIGH SPEED 12000LB WINCH WITH 50M SYNTHETIC ROPE
Brand: Terrafirma

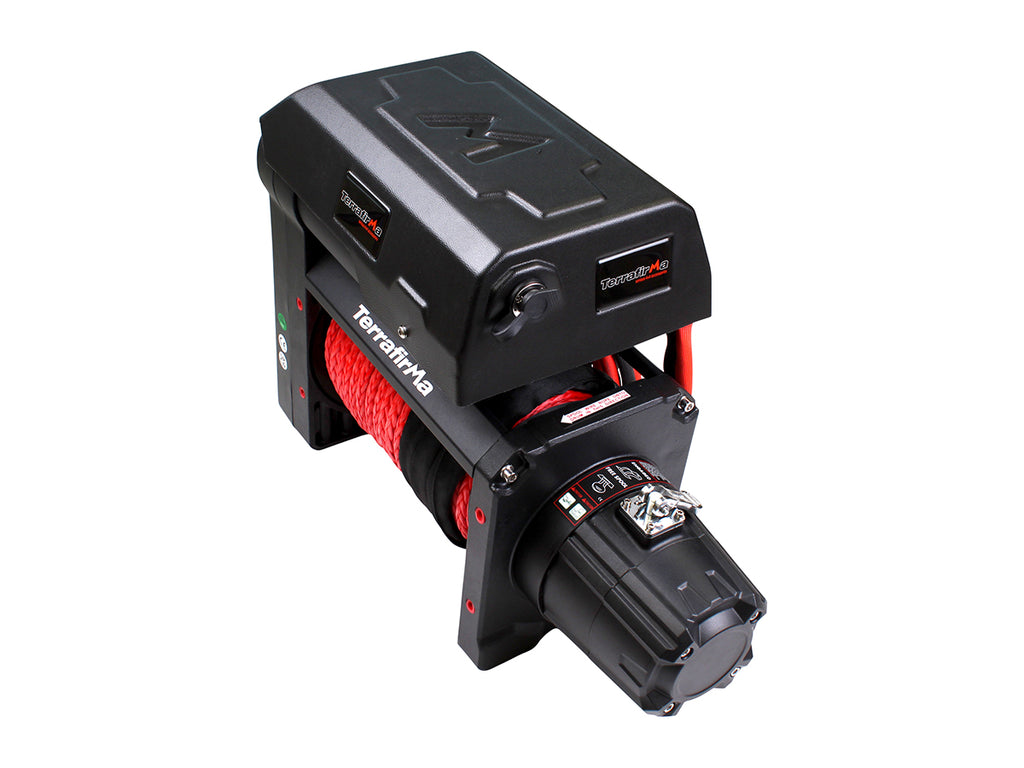

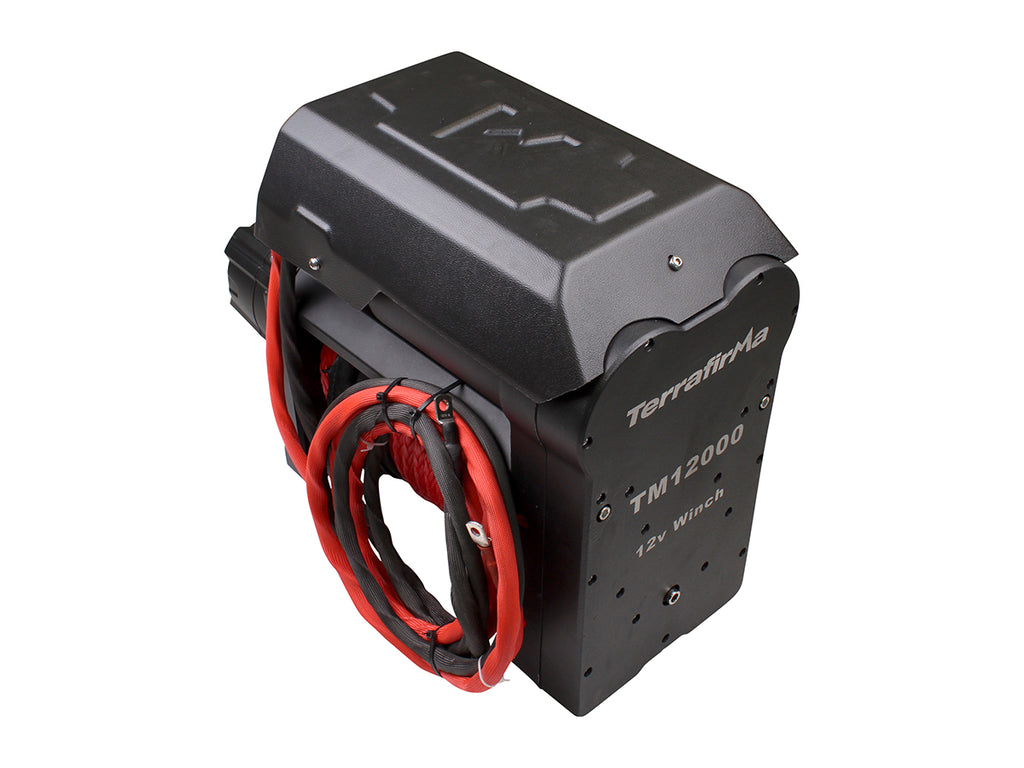

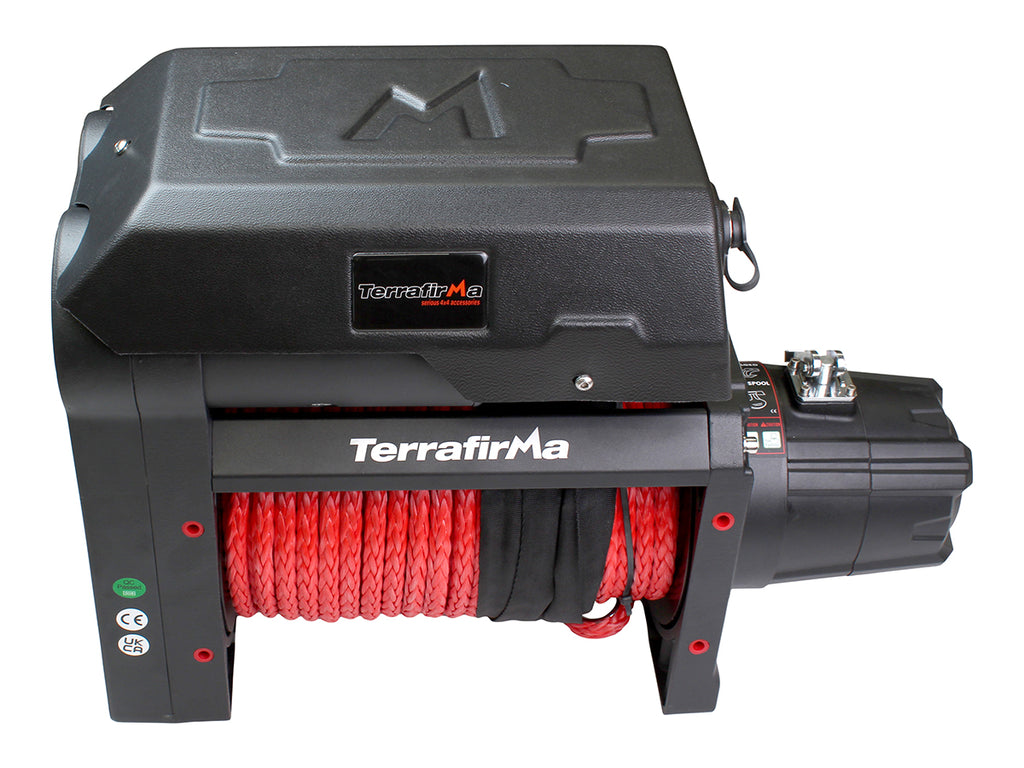

TF3360 Terrafirma Twin Motor High Speed 12,000lb Winch with 50m Synthetic Rope
The TF3360 is Terrafirma’s high-speed twin motor winch for demanding off-road, challenge and competition-style recovery setups. It combines a 12,000lb rated line pull with 50m of 11mm synthetic rope and twin 6.6hp motors for fast, powerful recovery work.
Fitment & compatibility
- Universal winch fitment, not vehicle-specific.
- Requires a bumper or tray designed to accept the larger twin motor winch footprint.
- Compatible with TF3360-specific accessories and service parts listed below.
- Check space, mounting pattern and battery capacity carefully before ordering.
Choose this if
Choose this if you are building a high-speed twin motor setup and have the bumper or fabrication to suit it. Choose the TF3380 EFS 12.5S if you want electronic free spool in a more conventional winch package, or the TF3301 A12000 for a simpler 12,000lb setup.
Why choose this
- Twin motor layout gives strong, fast winching performance.
- 50m of 11mm synthetic rope is useful for longer recovery pulls.
- Manual free spool can be upgraded with the optional air-operated kit.
- A strong choice for serious off-road builds where recovery speed matters.
Key features explained
- Twin 6.6hp motors: designed for high-speed, high-demand recovery use.
- 50m synthetic rope: provides reach while reducing weight compared with steel cable.
- Automatic gearbox brake: helps control the load during winching.

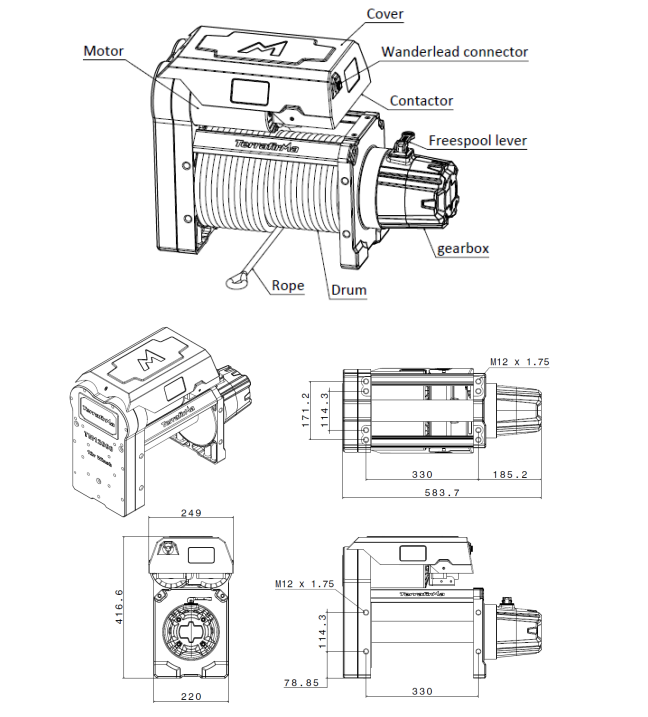

- Face and base mounting patterns: confirm before choosing a bumper or tray.
Installation & what else you may need
Installation is advanced. This winch is heavy and powerful, and must be fitted to a correctly engineered mount with high-current wiring and proper isolation. Professional fitting is strongly recommended.

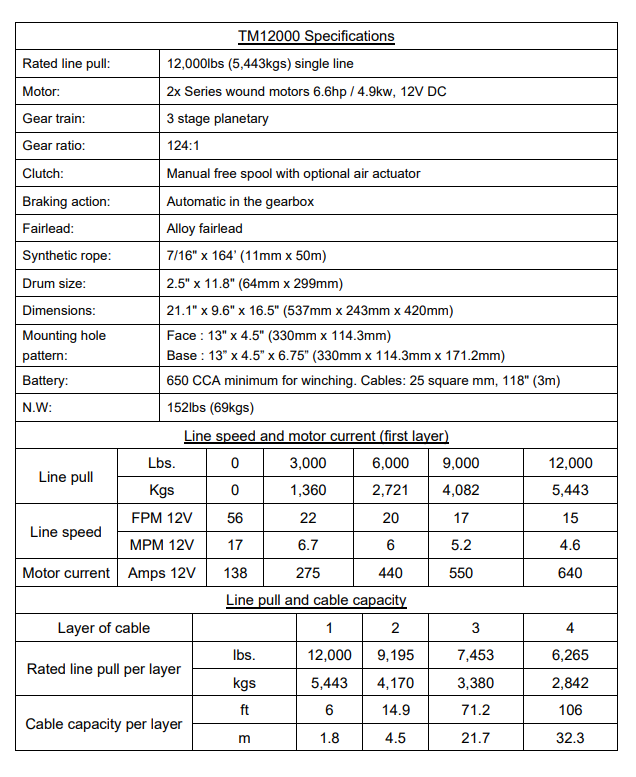

Specifications
| Product code | TF3360 |
| Rated line pull | 12,000lbs (5,443kg) single line |
| Motor | 2 x series wound motors, 6.6hp / 4.9kw, 12V DC |
| Gear train | 3 stage planetary |
| Gear ratio | 124:1 |
| Clutch | Manual free spool with optional air actuator |
| Braking action | Automatic in the gearbox |
| Fairlead | Alloy fairlead |
| Synthetic rope | 7/16in x 164ft (11mm x 50m) |
| Drum size | 2.5in x 11.8in (64mm x 299mm) |
| Dimensions | 21.1in x 9.6in x 16.5in (537mm x 243mm x 420mm) |

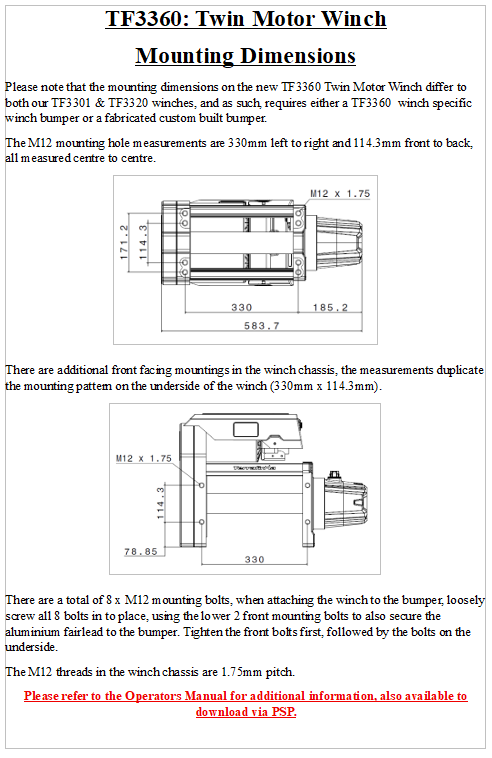

| Mounting hole pattern | Face: 13in x 4.5in (330mm x 114.3mm); Base: 13in x 4.5in x 6.75in (330mm x 114.3mm x 171.2mm) |
| Battery / cable requirement | 650 CCA minimum for winching; 25mm² cables, 118in (3m) |
| Net weight | 152lbs (69kg) |
What's included / not included

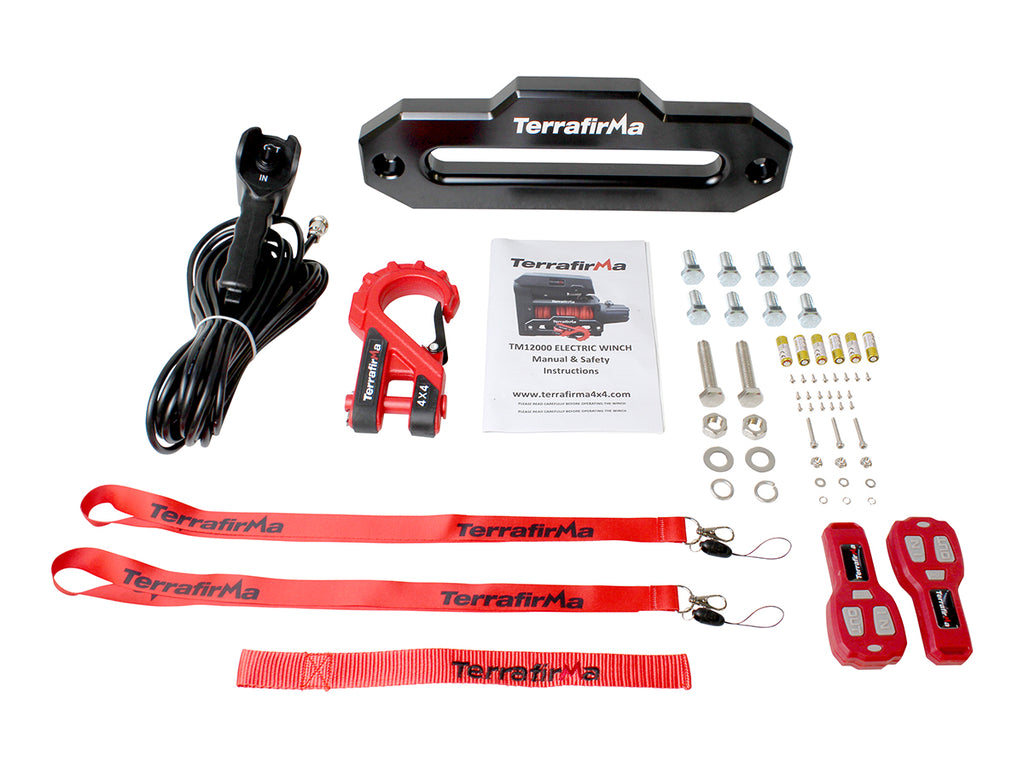

- Included: 1 x TF3360 twin motor winch with 50m synthetic rope and alloy fairlead as stated in the supplied product data.
- Not included unless stated: Winch bumper, wiring accessories beyond stated cables, air free spool kit, isolator and fitting labour.
Recommended add-ons
- TF3361 air-operated free spool kit
- TF3344 50m replacement synthetic rope
- TF3376 replacement fairlead
- TF3336 winch damper
Helpful TFR links
Safety note: Recovery and winching loads can be dangerous. Always use correctly rated equipment, secure recovery points and a winch damper where appropriate, and keep people clear of any loaded line.
Will this fit a standard winch bumper?
Not necessarily. The TF3360 is a twin motor winch with larger mounting requirements. Use a bumper or tray confirmed for the TF3360.
Can I add air free spool?
Yes, the supplied product data notes manual free spool with optional air actuator. Use the TF3361 air-operated free spool kit.
Is professional fitting recommended?
Yes. This is a heavy, high-power recovery winch and should be installed to a correctly engineered mount with suitable wiring.
